1. Tropical Cooling & Engine Performance

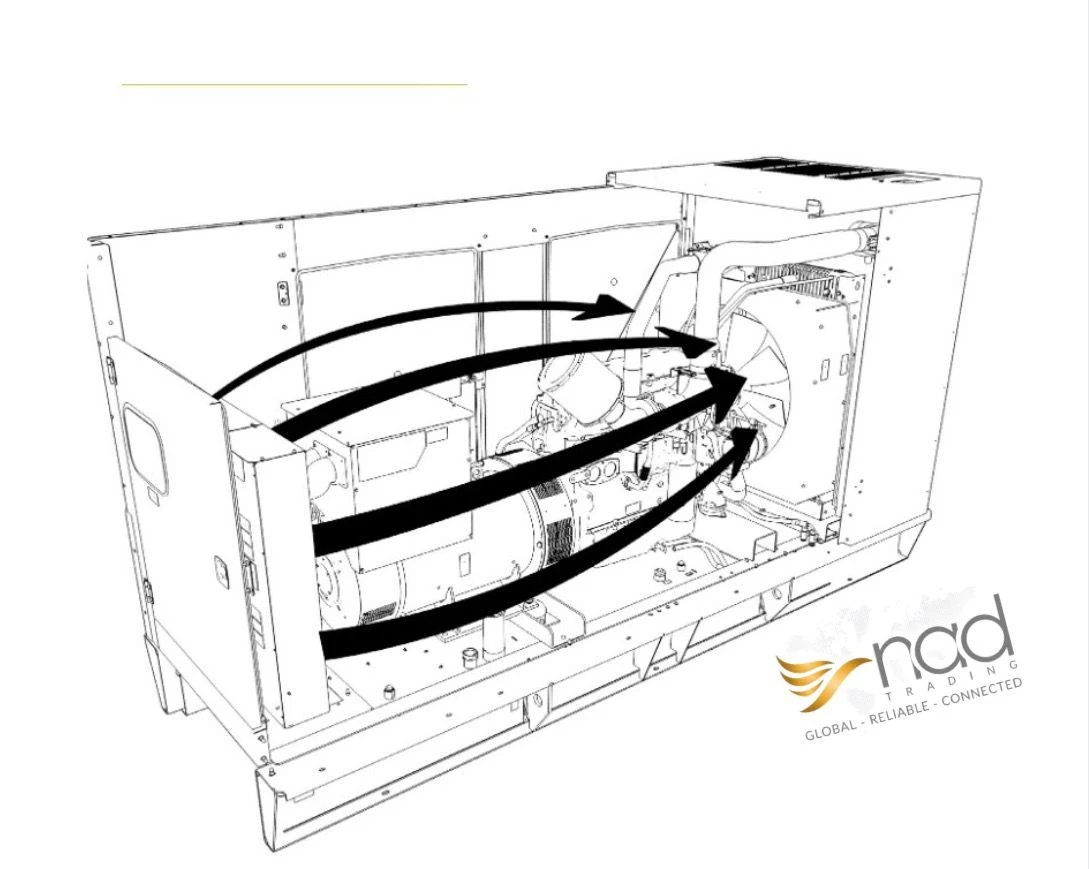

Standard generators often struggle when ambient temperatures exceed 40°C. For the GCC, the cooling system is redesigned to prevent "derating" (loss of power).

Radiator: Upgraded to a Heavy-Duty Tropical Radiator rated for 50°C to 55°C ambient conditions.

Coolant: High-boiling-point chemical coolant to prevent evaporation and engine cavitation in desert heat.

Derating Protection: Engine tuning ensures the generator provides its rated kVA even in 45°C+ temperatures.

2. Desert-Ready Filtration & Protection

Dust and fine silica sand are the primary causes of engine wear in the Middle East.

Air Intake: Equipped with Two-Stage Heavy-Duty Air Cleaners and centrifugal pre-cleaners to remove 99% of sand before it reaches the engine.

Fuel/Water Separator: Enhanced filtration to remove condensation moisture caused by high humidity in coastal areas (e.g., Dammam or Dubai).

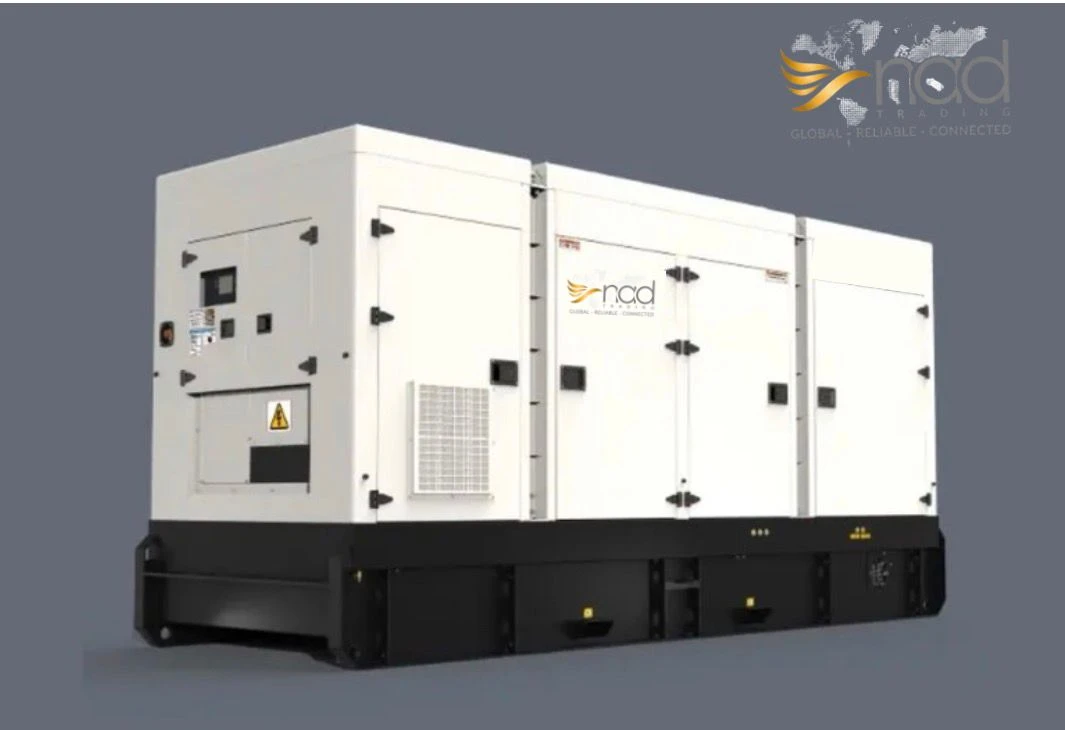

Canopy: The acoustic enclosure is IP55-rated for the control cabinet to prevent dust ingress into sensitive electronics.

3. Electrical & Grid Synchronization

Depending on the specific GCC country, the electrical output is adjusted to meet national utility standards.

Frequency: * Saudi Arabia (SASO): Configured for 60 Hz at 230V/400V.

UAE/Qatar/Oman/Kuwait: Configured for 50 Hz at 230V/400V.

Alternator: Class H Insulation is mandatory. This allows the internal copper windings to operate at higher temperatures without the insulation melting or short-circuiting.

4. Digital Monitoring for Remote Sites

In the GCC, generators are often used in remote oil fields or construction sites. The Remote Monitoring System (RMS) mentioned in your images is critical here:

Anti-Theft: Specialized sensors for Fuel Pilferage Alerts to prevent unauthorized fuel siphoning.

IoT Dashboard: Real-time monitoring of battery health and engine oil pressure from a central office in the city.

Safety: Automatic shutdown for high coolant temperature (vital when ambient heat spikes).

5. Summary Table: GCC vs. Standard

Feature Standard Spec GCC Spec (Converted)

Ambient Rating 40°C 50°C - 55°C (Tropicalized)

Air Filtration Standard Dry Type Heavy-Duty 2-Stage / Pre-cleaner

Frequency 50 Hz 60 Hz (KSA) / 50 Hz (Other GCC)

Canopy Coating Powder Coated UV-Resistant/High-Corrosion Coating

Control Panel IP23 / Standard IP54/55 (Dust/Waterproof)

Technical Breakdown by Model (GCC Adjusted)

Model Range Cooling Method Governing Class Recommended Use

5 - 15 kVA Air/Water Cooled G2 Small Shops / Telecom Towers

20 - 250 kVA Water Cooled (T) G2 / Electronic Residential / Commercial

320 - 1250 kVA Water Cooled (T)
